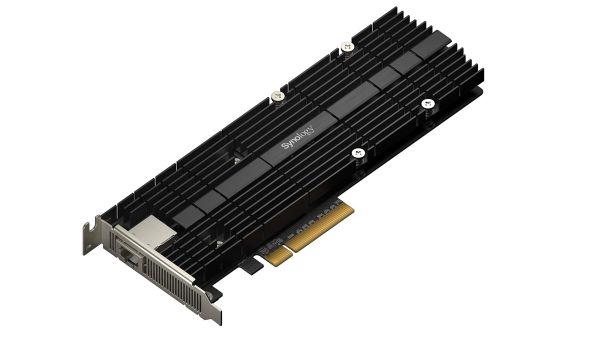

Synology E10M20-T1 Ethernet PCI-Express Network Adapter

The Synology E10M20-T1 is an innovative PCIe 3.0 x8 adapter that simultaneously delivers 10 Gb/s network connectivity and dual M.2 NVMe SSD caching, all within a single expansion slot on your Synology NAS. It equips your system with a 10GBASE-T port that auto-negotiates through speeds from 100 Mb/s up to 10 Gb/s and includes two M.2 slots (2280/22110) for SSD cache acceleration. Designed for use with Synology's SNV3000 series SSDs, it enhances both I/O performance and network bandwidth without sacrificing main drive bays.

Key Features

• Interface & Form Factor: PCIe 3.0 x8 adapter card, compatible with both low-profile and full-height slots.
• Networking: 10Gb/s RJ-45 port supporting auto-negotiation across 100Mb/s, 1G, 2.5G, 5G, and 10G speeds, with jumbo frame and offloading support.
• Storage: Dual M.2 (2280/22110) NVMe SSD slots (M-key) for cache acceleration, freeing up drive bays for additional storage.
• Compatibility: Compatible with a wide range of Synology NAS models; optimized for use with SNV3000 SSDs.
• Reliability: Operates from 0°C to 40°C with humidity tolerance of up to 95% RH.

The E10M20-T1 delivers seamless cache acceleration and 10 GbE networking in a single card, perfect for boosting NAS I/O and connectivity. Available through Networking Corner, it pairs Synology reliability with our trusted service and support.
